Detailed description:

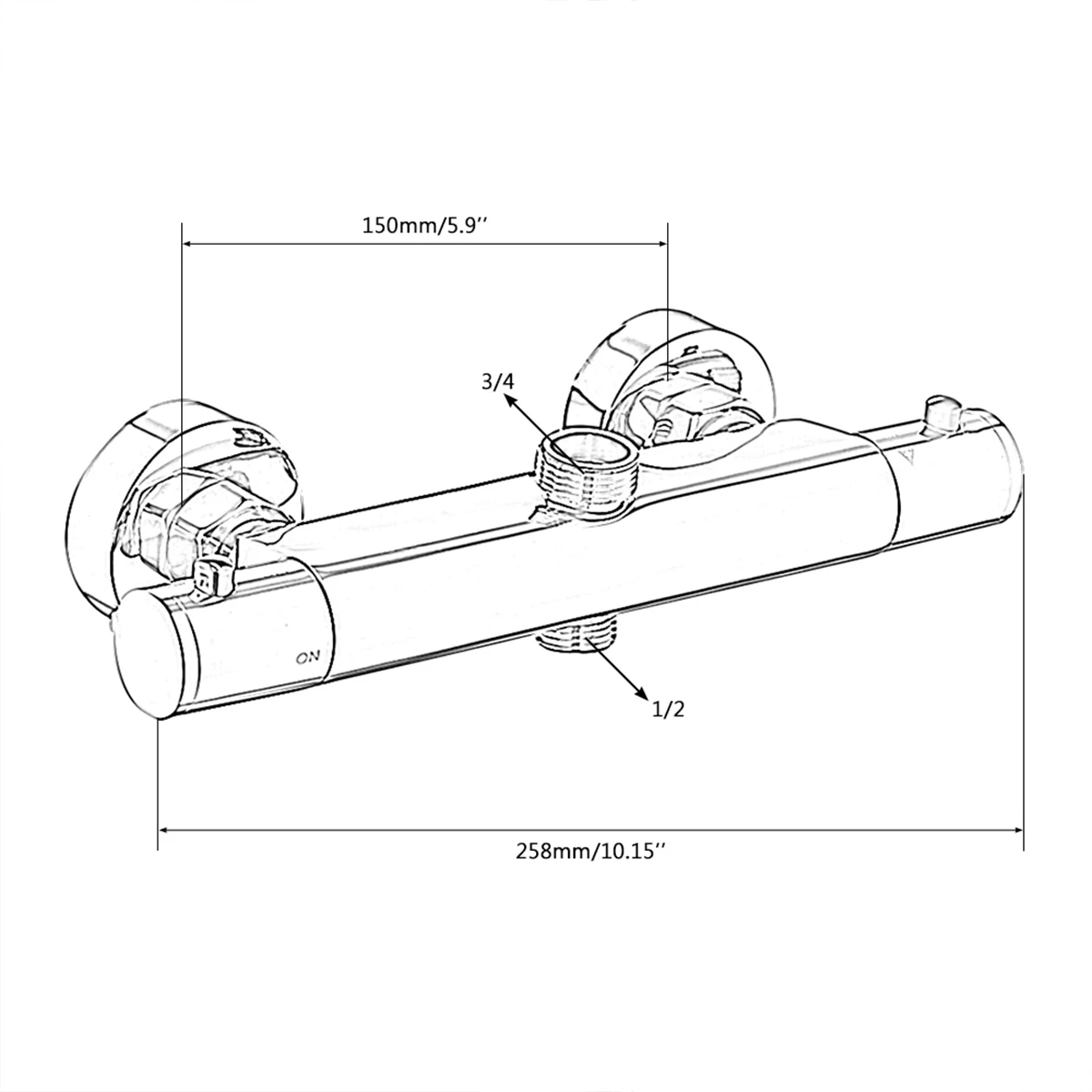

Water absorption size: 1/2 "BSP (21mm) for lignite hose
Top outlet size: 3/4" BSP (25mm) is used to flush the column.
The left button adjusts the water flow and the right button adjusts the water temperature.
Temperature adjustment range: 20-50℃
Center distance of installation hole: 15cm

Highlight description:

1.The water storage temperature of 60℃ is considered to be enough to meet all normal requirements and minimize the impact of lime deposition in heavy water areas.

2.The hot feed temperature must be at least 10℃ higher than the required mixing temperature to obtain the best performance.

3.The introduction of hot water pipe must be carried out at the left inlet, marked hot, ∞ or marked with red orange label.

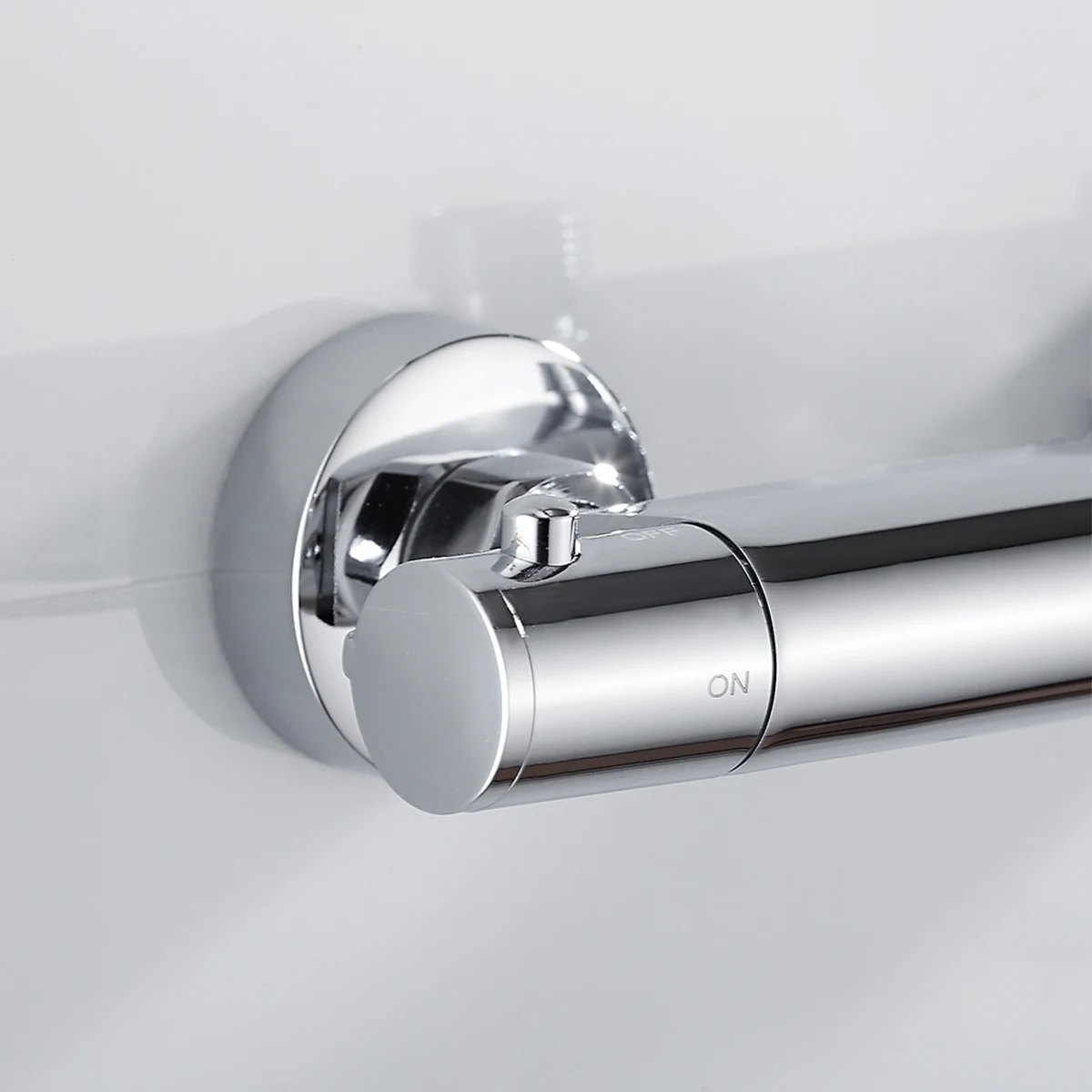

4.To start the shower, turn the flow regulator counterclockwise (left side).

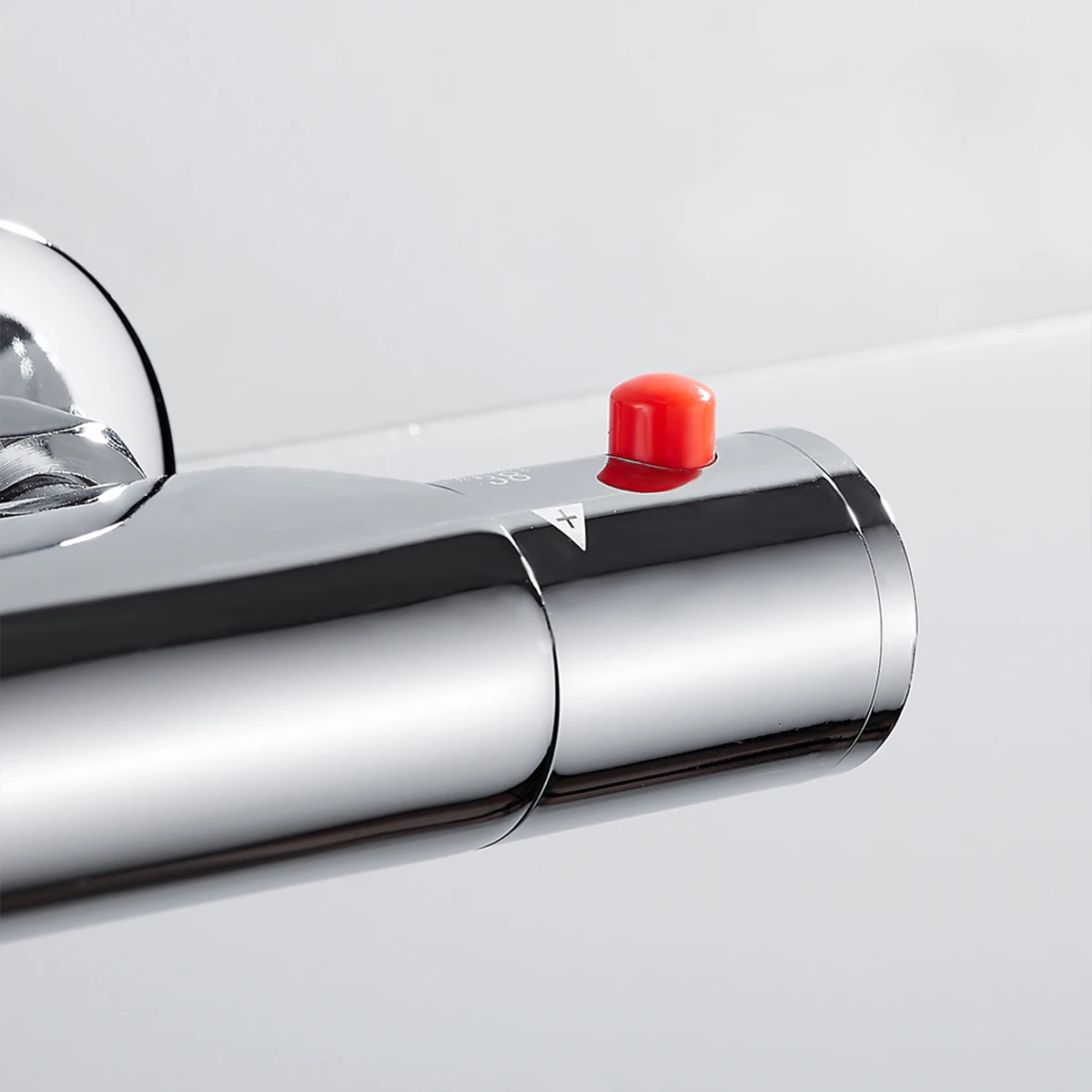

5.To adjust the water temperature, turn the thermostat (right side).

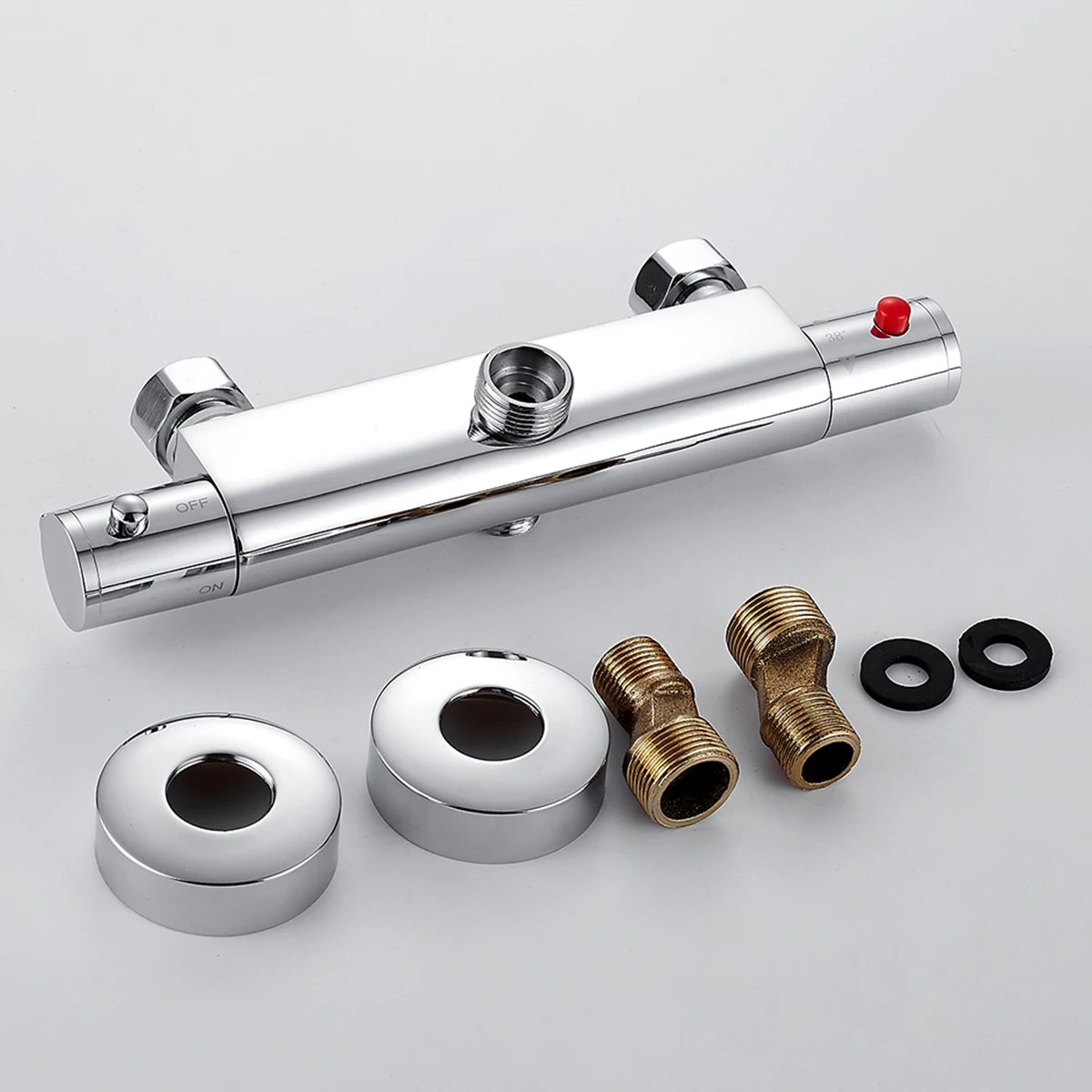

Parts List:

1x Thermostatic Shower Mixing Valve
